Polar Moment of Inertia is a measure of resistibility of a shaft against the twisting
Polar moment of inertia is required to calculate the twist of the shaft when the shaft is subjected to the torque.
It is different from the moment of inertia. where inertia is resistance to change in its velocity. Which is directly proposal to the mass.

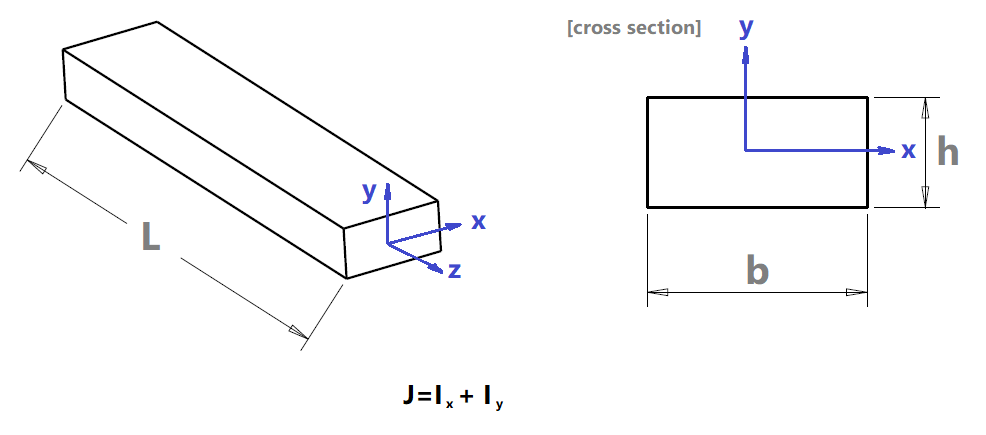

Example: Consider a beam of length L and a rectangular cross-section having bxh
Where the three axis X, Y, Z represented.
X-axis along the breadth of the rectangular cross-section.
Y-axis along the height of the rectangular cross-section.
Z-axis along the length of the beam.
The moment of inertia about the X-axis and Y-axis are bending moments, and the moment about the Z-axis is a polar moment of inertia(J).
Polar moment of inertia is equal to the sum of inertia about X-axis and Y-axis
This is for the Rectangular cross-section beams.

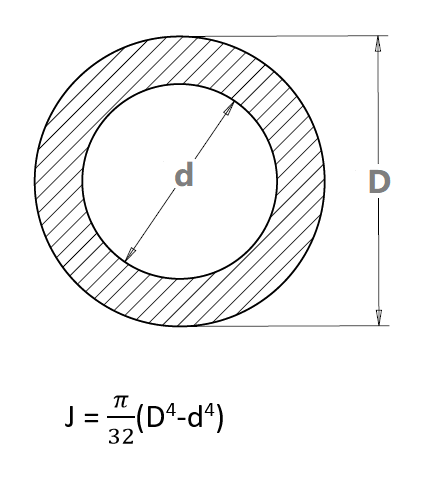

Polar Moment of Inertia for Circular Cross-section
For solid circular shaft d value will be zero in the above formula.

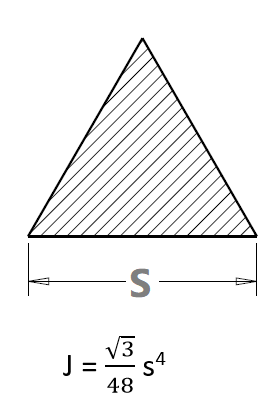

Polar Moment of Inertia for Triangular Cross-section

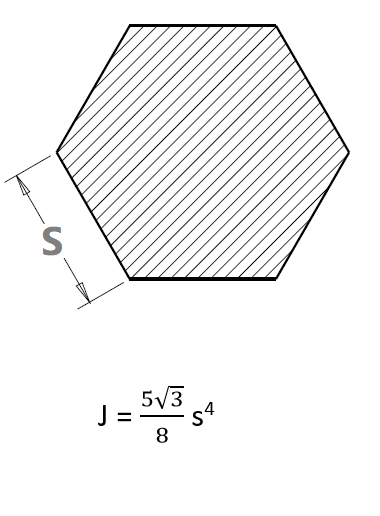

Polar Moment of Inertia for Hexagonal Cross-section
