The angle is a measurement that we can measure between the two lines which meet at one point. Angular measurements are playing a very crucial role in measurements. The best example is that the Ships and the Aeroplanes will navigate with the help of The precise angular directions of the landing area. Let’s discuss Angular Measuring Instruments.

# Angular Measurement

- As we said above the angle is defined as the opening between the two lines when they coincide at one point.
- The basic unit for the Angular measurement is Degree (°). If a circle is divided into 360 equal parts by a line passing thru the centre. then each part can be called as a D
**egree**(°). - Each degree (°) divided into 60 Minutes (‘).
- Each minute (‘) divided into 60 Seconds(“).
- Another unit for the angle is
**Radian**. - Radian defined as the angle at the centre of an arc whose length is equal to the radius of the arc(Circle).
- 1 Radian = 57.2958°

# Angular Measuring Instruments

- For Angular measurements, there are a wide variety of devices available in metrology.
- But the measuring device can be preferred based on the type of the component to be measured, and the accuracy and precession required in the measurements.
- The accuracy of the device is the least count of each device.
- Protractors are the populated instruments used for the angular measurements.
- A simple Protractor is a basic device for angular measurements. At best, A simple protractor can provide the least count of one degree (1°) for smaller protractor and half a degree(0.5°) for large protractors.
- There is a wide variety of protractors available, out of them vernier bevel protractor is the most populated one.
- An ordinary Vernier bevel protractor can read up to 2.5 minutes (0.04°) whereas an optical protractor can read up to 2 minutes (0.03°).

Following are the different Angular Measuring Instruments

- Vernier Bevel Protractor
- Optical Bevel Protractor
- Universal Bevel Protractor
- Sine Bar
- Angle Gauges
- Clinometer
- Angle Dekker
- Auto Collimator

The above are the different angular measuring Devices available.

# Vernier Bevel Protractor

Bevel Protractors are the Angular measuring devices. Vernier Bevel protractor is the simplest angular measuring device which is having a Vernier Scale(Similar principle as the Vernier Calliper) along with the acute angle attachment.

*(The meaning of bevel is which is not 90°)*

Read more about Vernier Caliper here!

# Optical Bevel Protractor

Optical bevel Protractor is the advancement of the Vernier Bevel Protractor with the additional optical magnifying device to attain more accuracy and precise measurement up to 2 minutes of the angular measurement. Actually, Vernier Bevel Protractor can measure up to 5 minutes of the angular measurement only.

Read more about Optical Bevel Protractor here!

# Universal Bevel Protractor

Vernier Bevel Protractor is often known as the Universal Bevel Protractor. It is one of the angular measuring instrument used for close tolerances within 5 minutes.

Read more about Universal Bevel Protractor here!

# Sine Bar

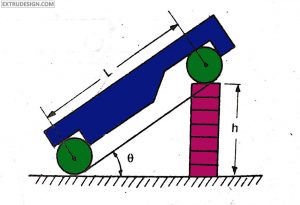

Sine Bar is a Precision Angular Measuring Instrument to measure angles and to locate the workpiece or Job at a required angle very accurately for machining.

Read more about Since Bar here!

*/**We will Briefly explain the remaining angular measuring instruments individually in Future articles. Comment below letting us know your thoughts.*
